Main Technical Features
- 2 tracks stereo master recorder, ¼ inch (6,35 mm).
- Master recorder for vertical or horizontal position.
- Tape speeds: 15 - 7.5 ips (38.1 - 19.05 cm/sec.).
- Equalization: CCIR.
- Tape Reel: AEG-DIN (standard), CINE (EIA) -Trident (Optional).
- Reel size: up to 12,5” (31,8 cm) for metal reels or plates.
- Balanced XLR input and output.
- Digital timer display; H, Min, Sec.
- Edit mode with Jog and Shuttle function.

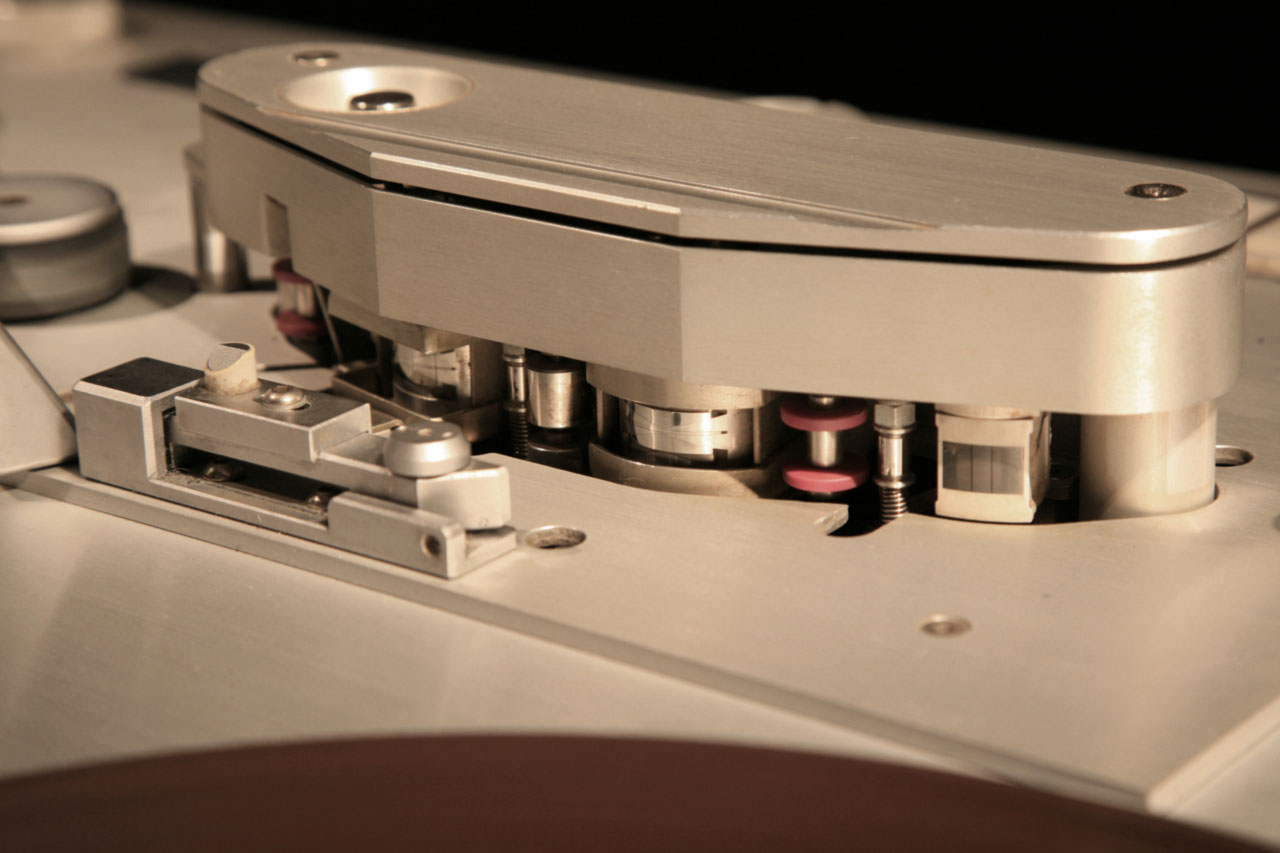

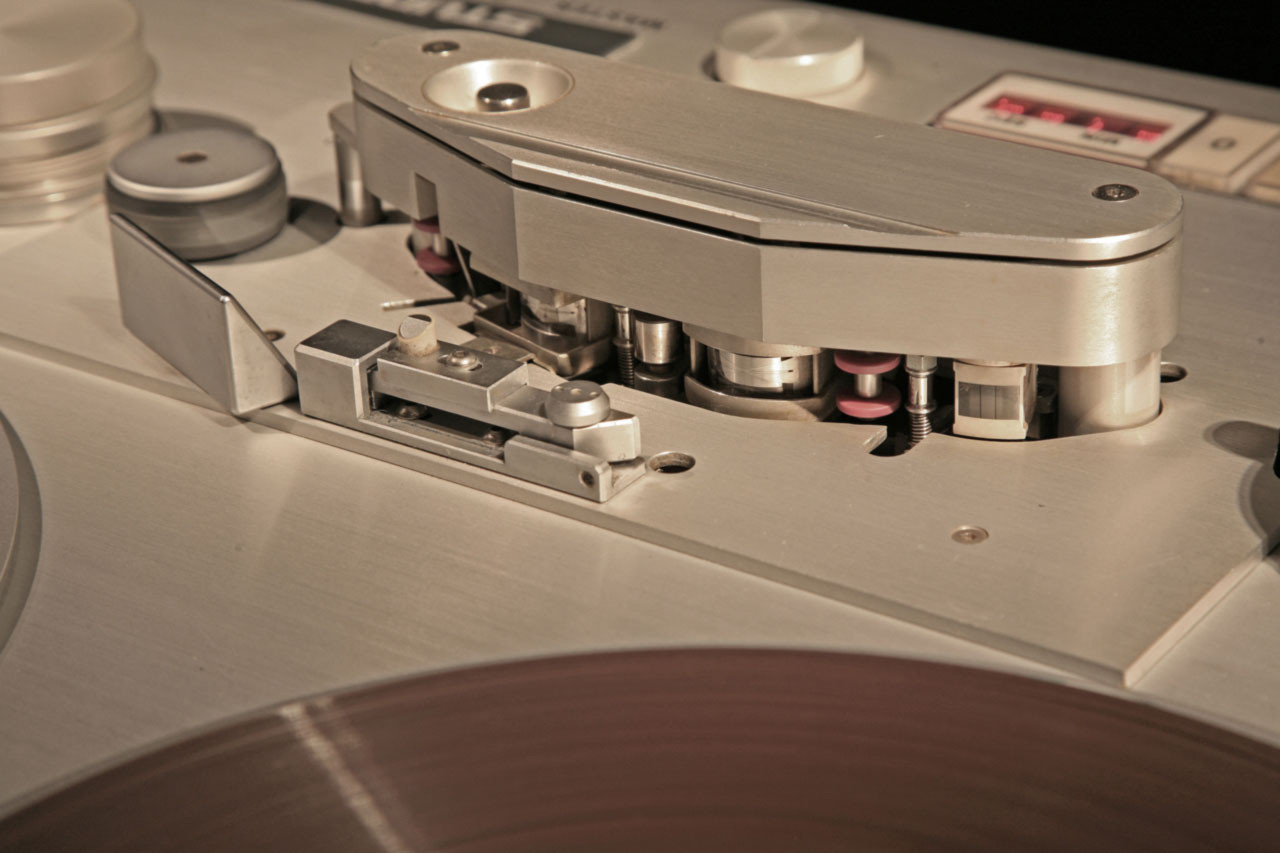

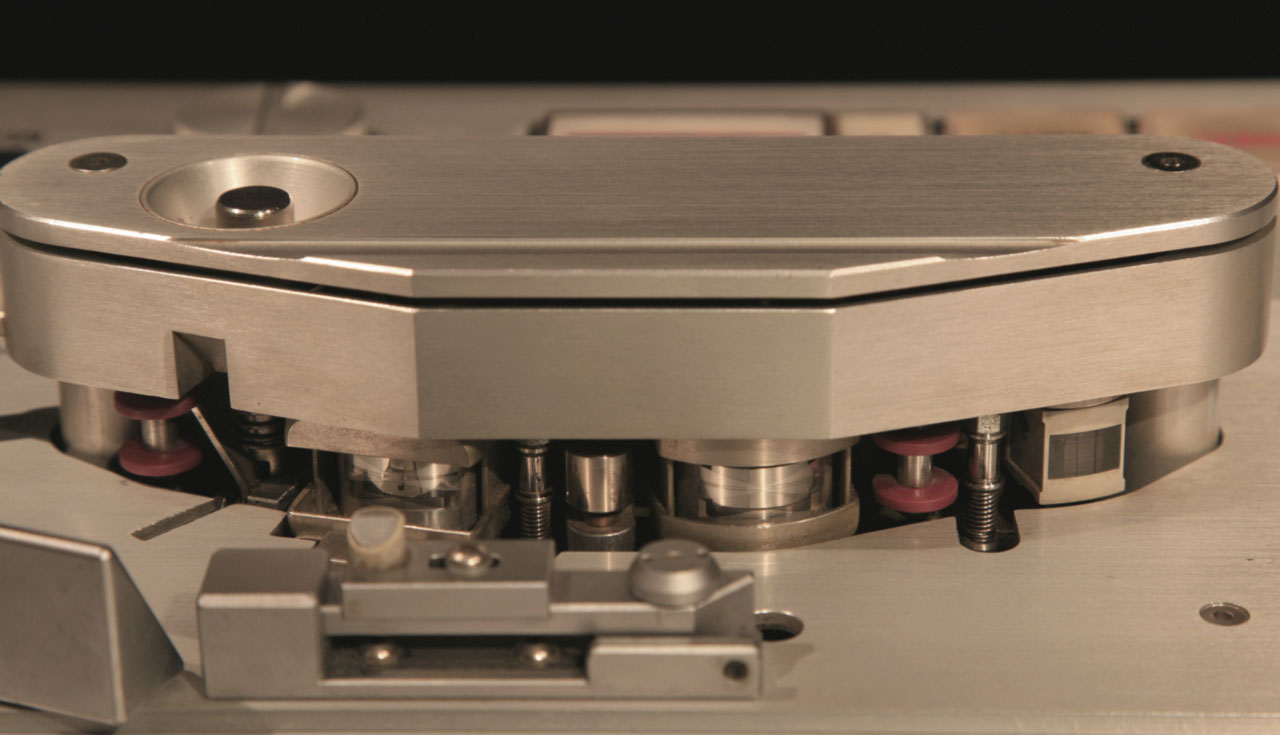

- Butterfly heads.
- Tape path: during FF and REW mode, the tape runs over bearing pulleys only, without any friction over metal pivots.
- Spooling time: about 100 sec. for 760 mt. of tape.
- Weight: about 50 Kg
- Dimensions: H x W x D, 260 x 640 x 550 mm.
- Power absorption: about 250 W in Play-Rec-Rew.
- Power supply 220 Volt-50 Hz.
|

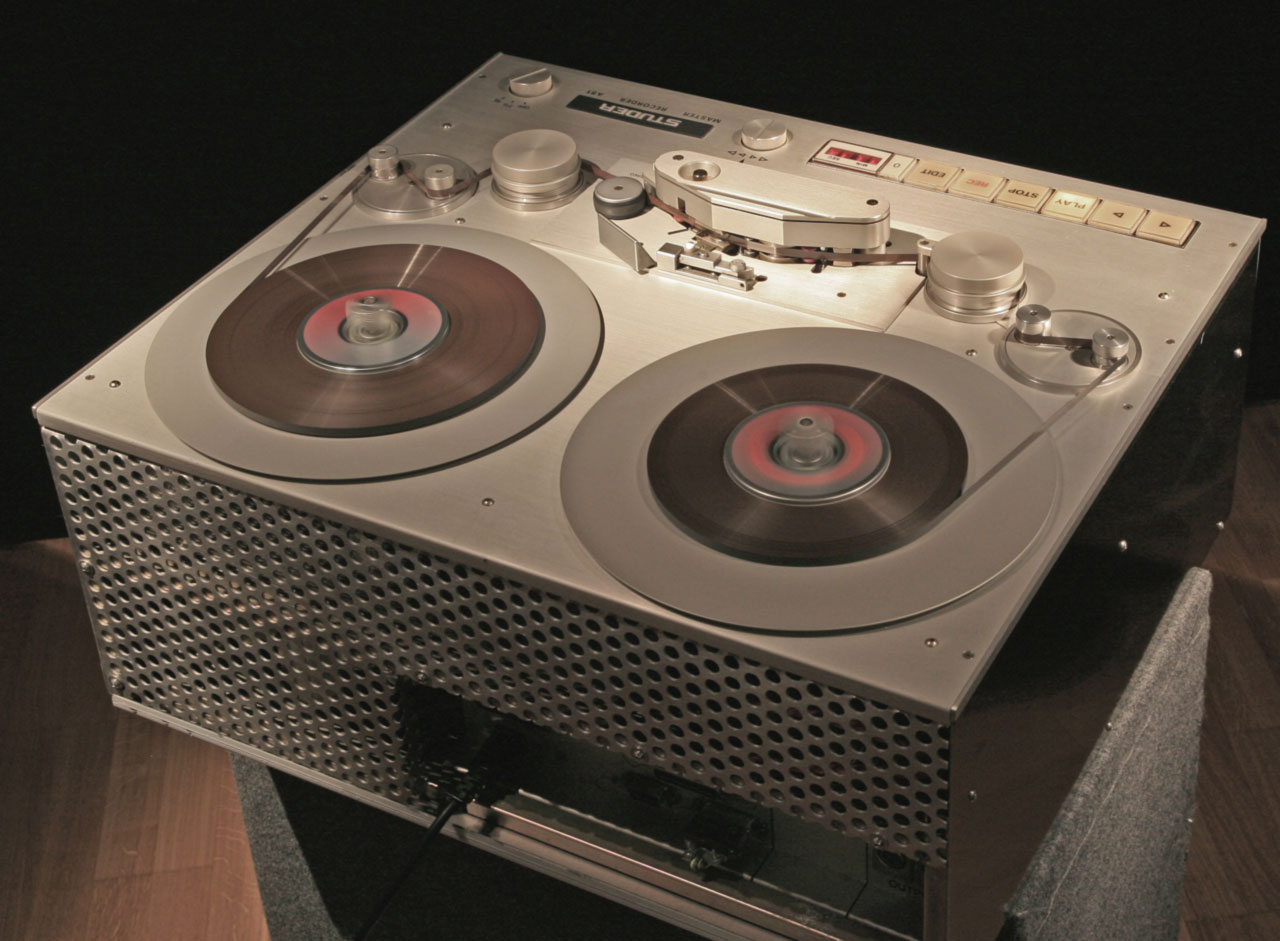

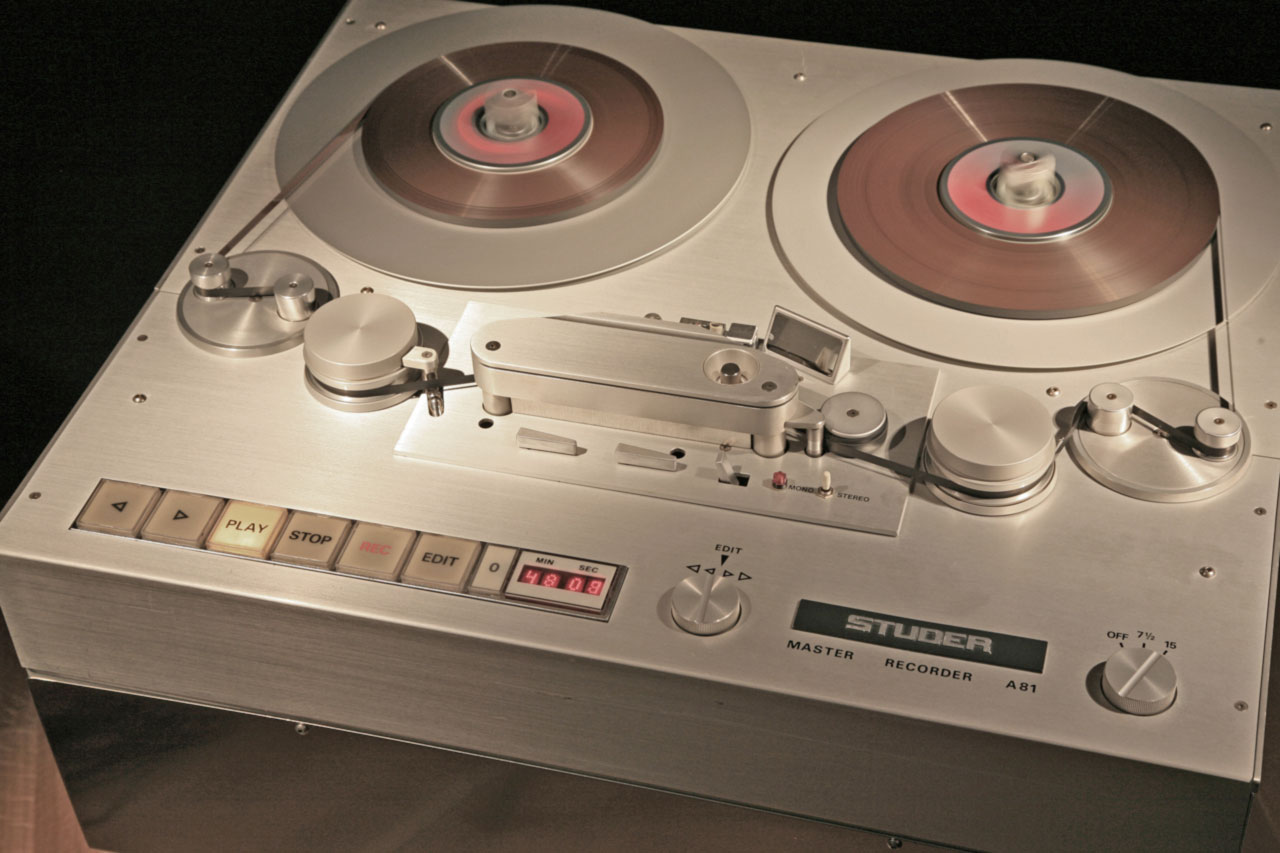

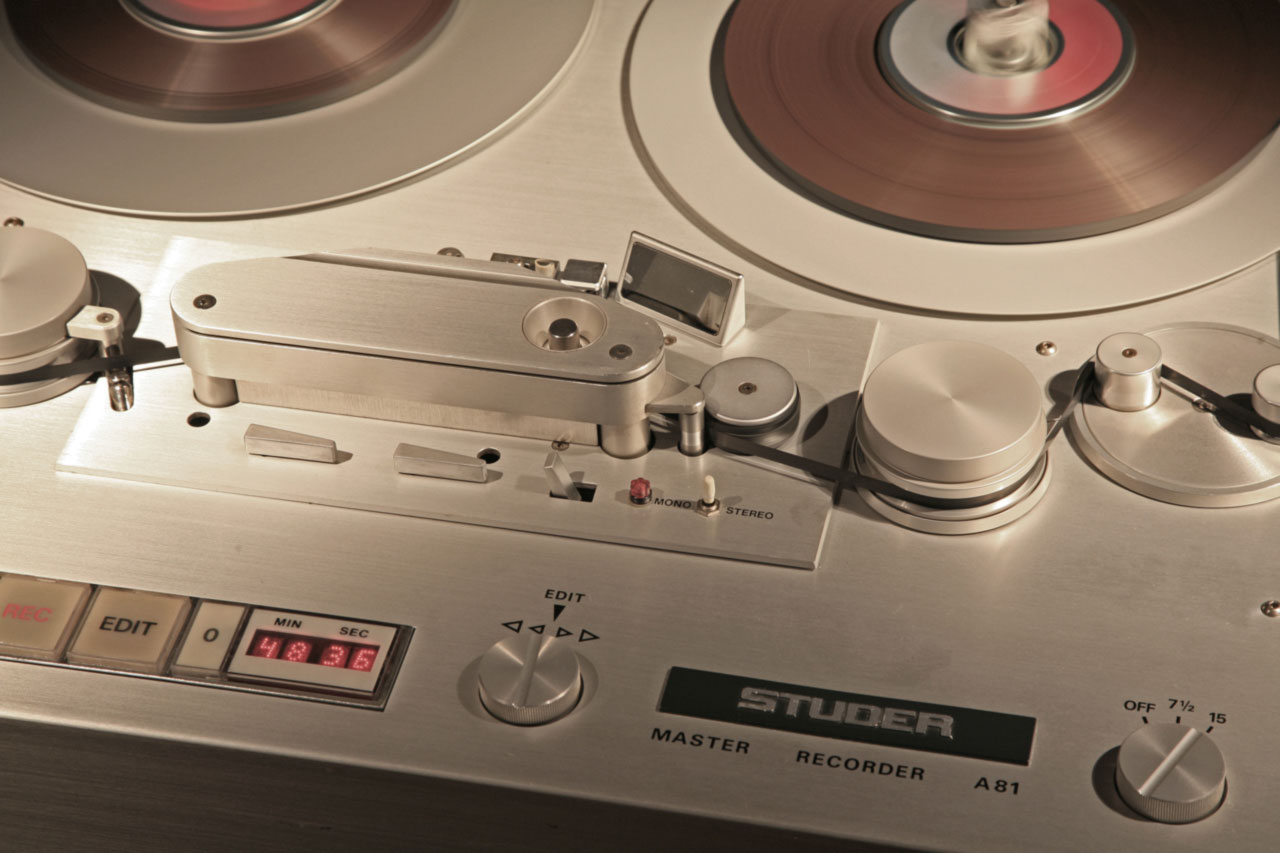

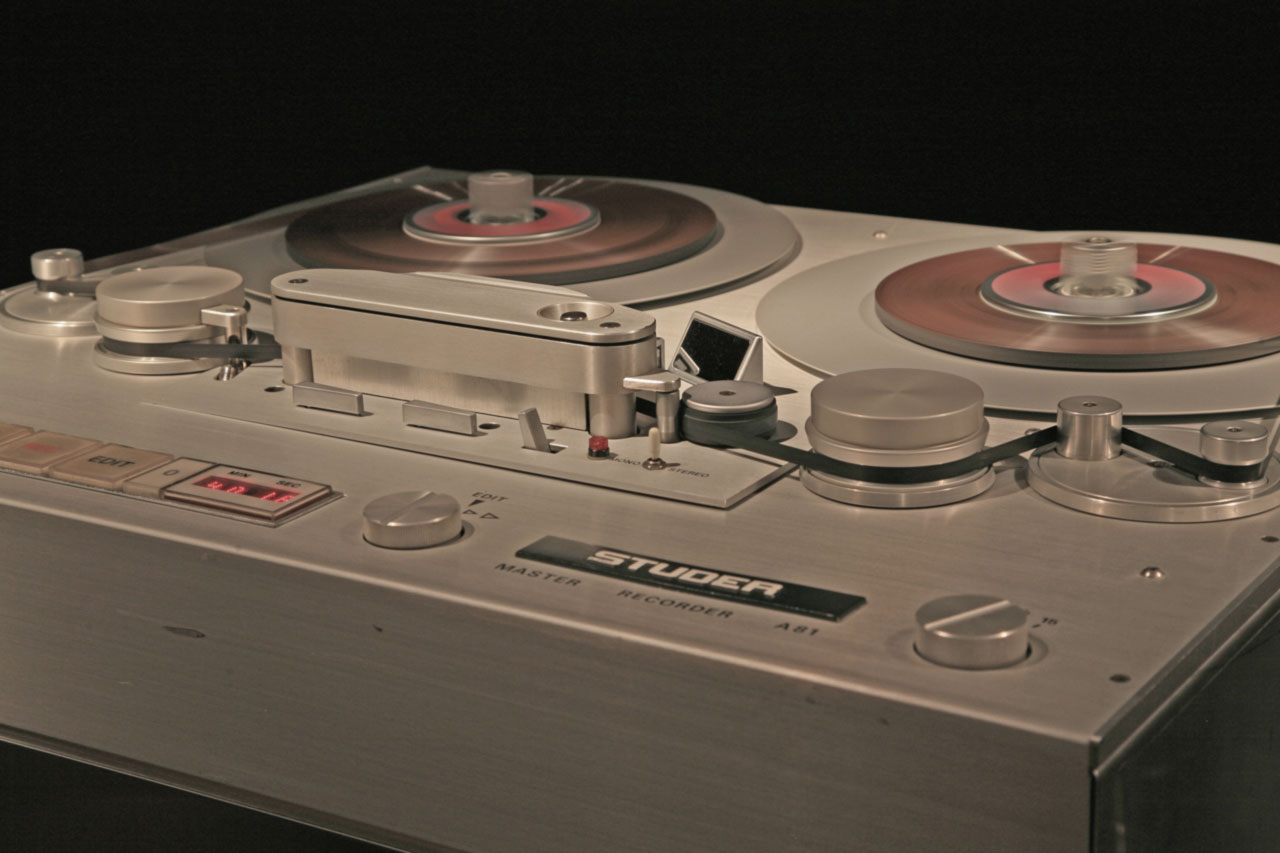

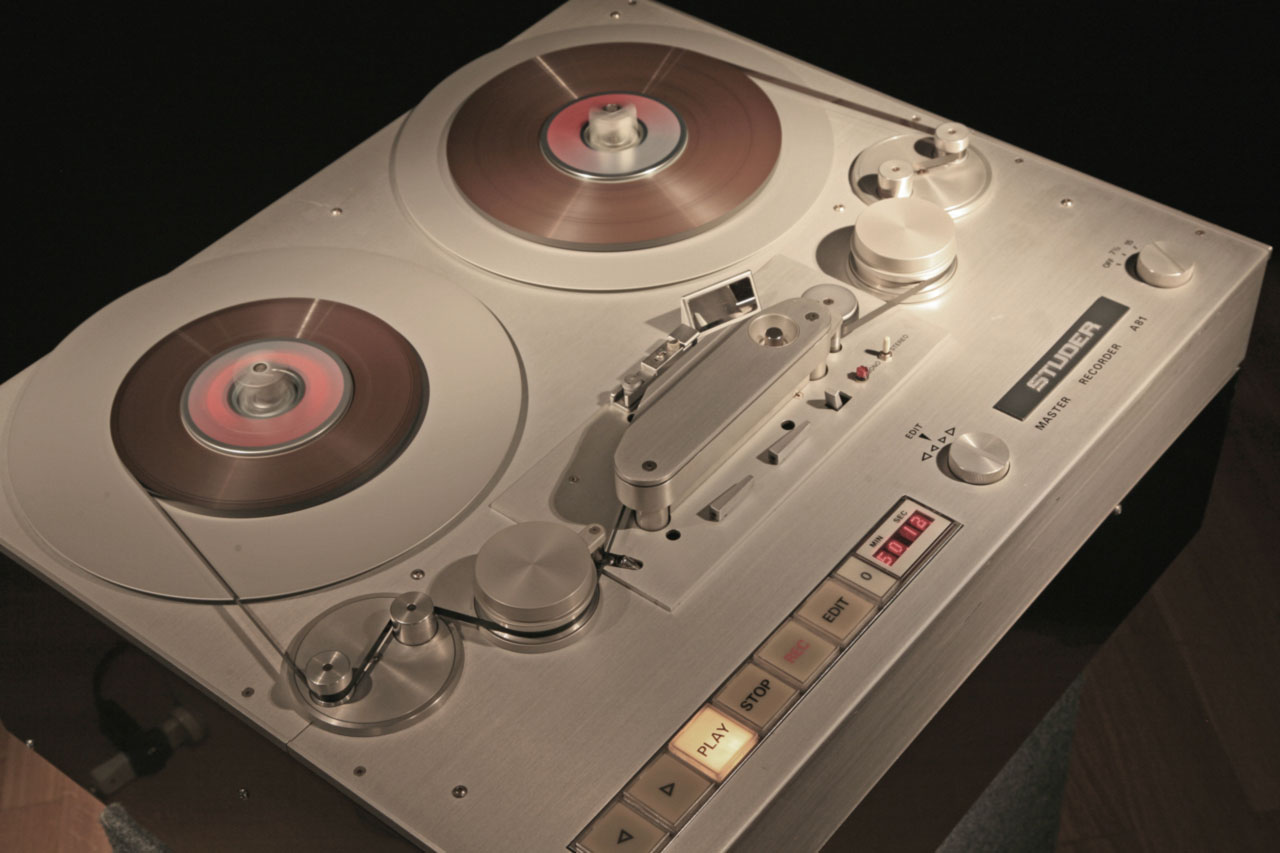

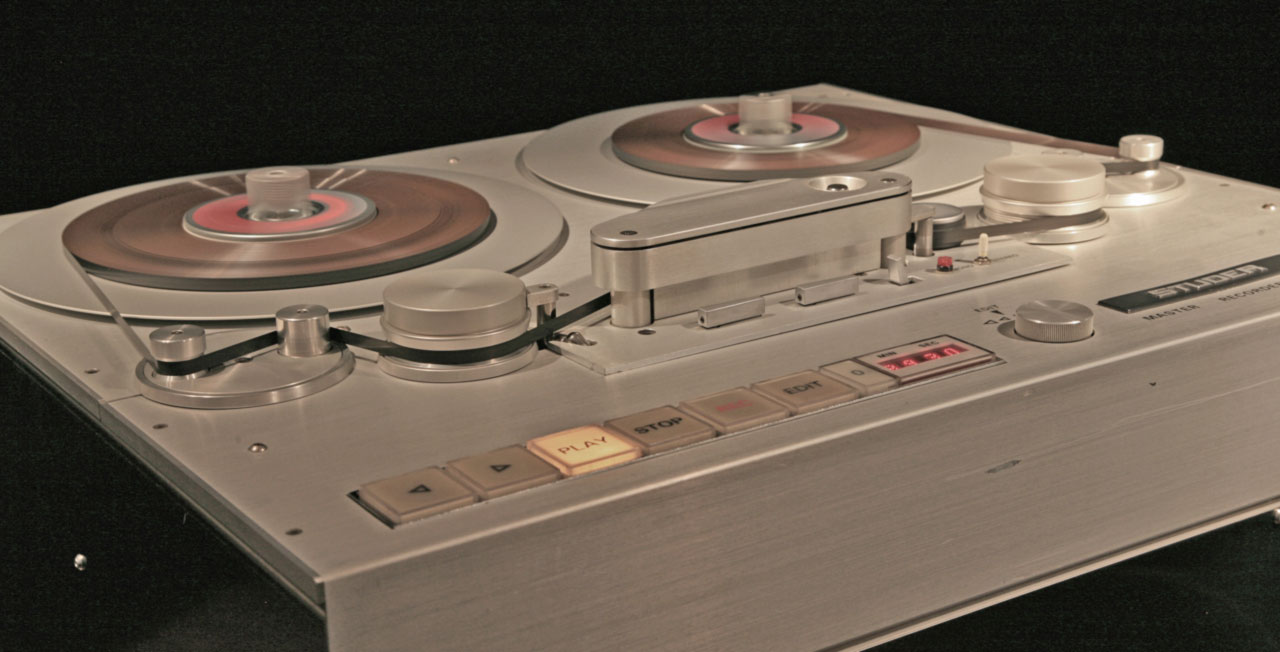

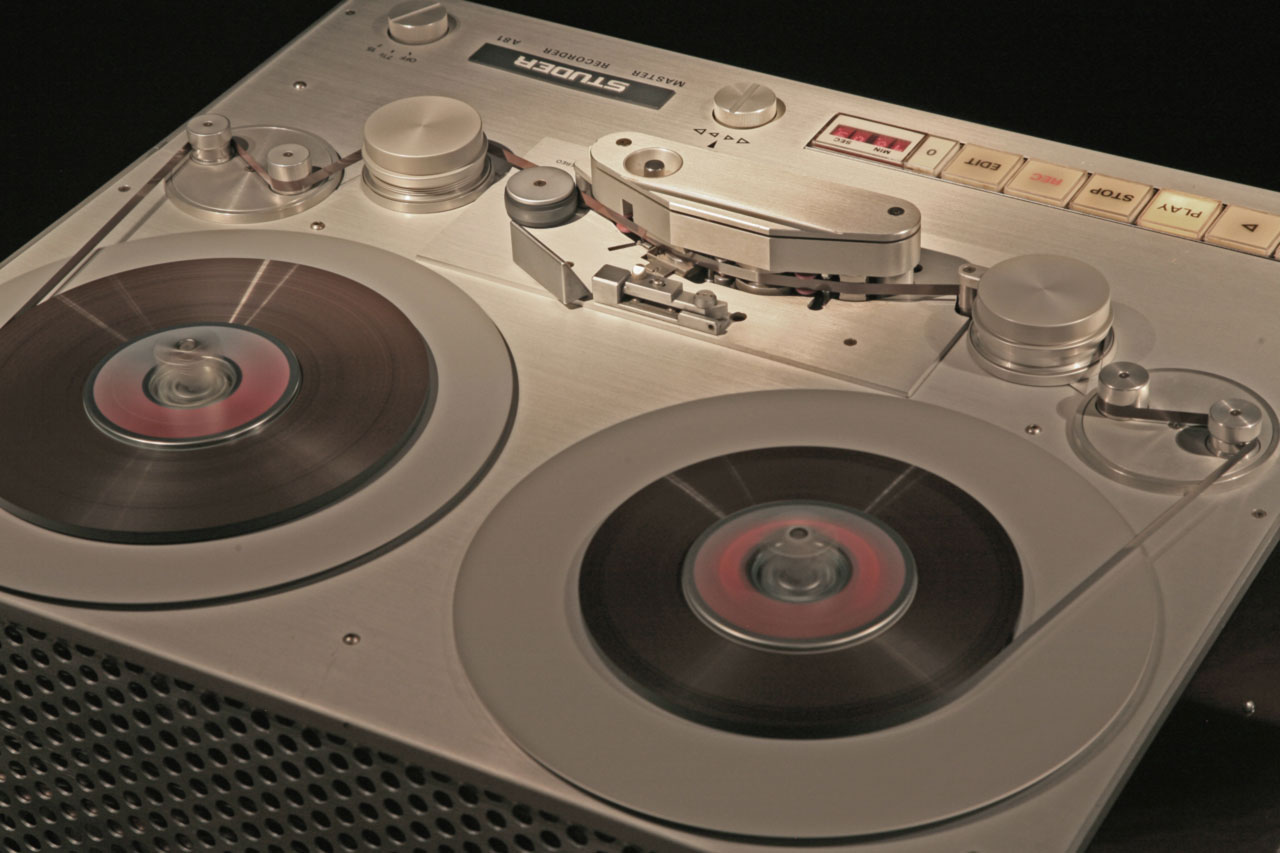

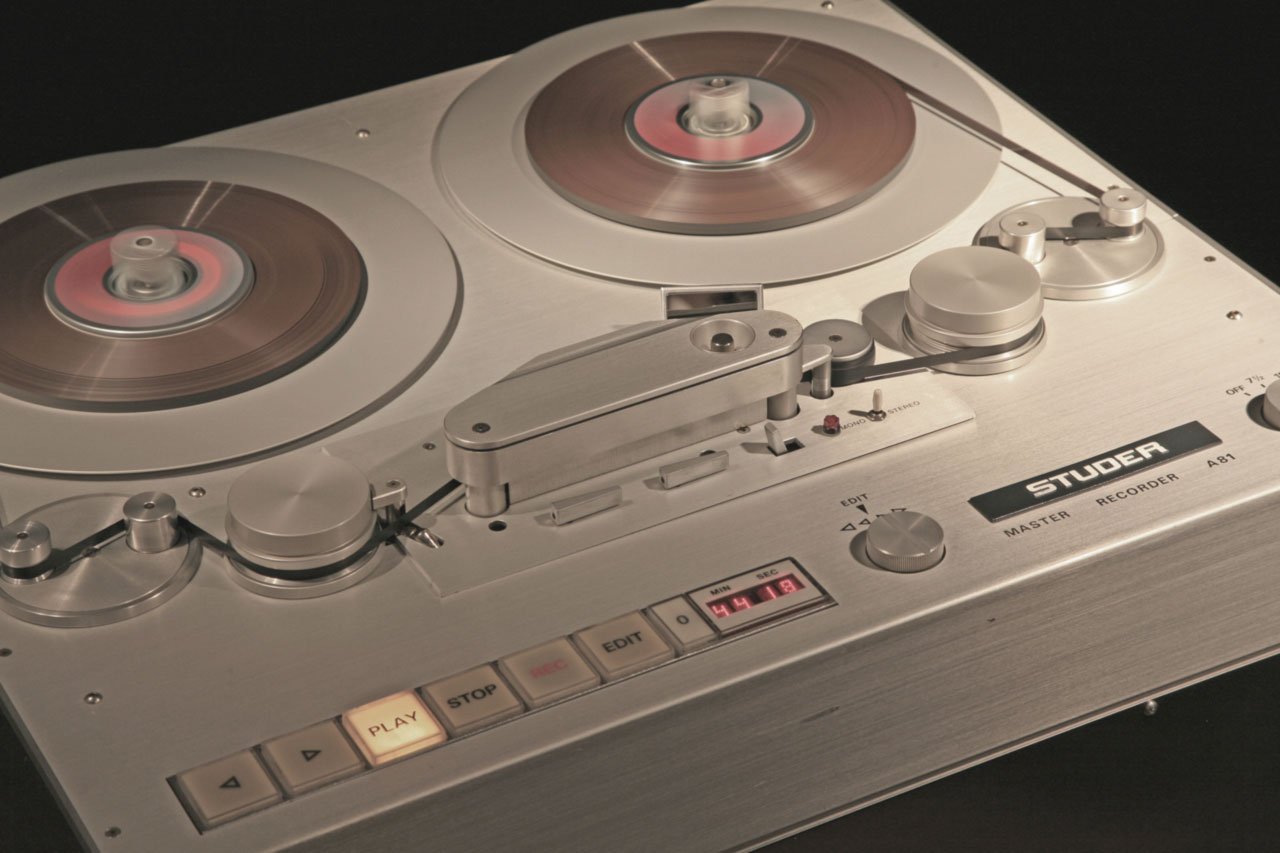

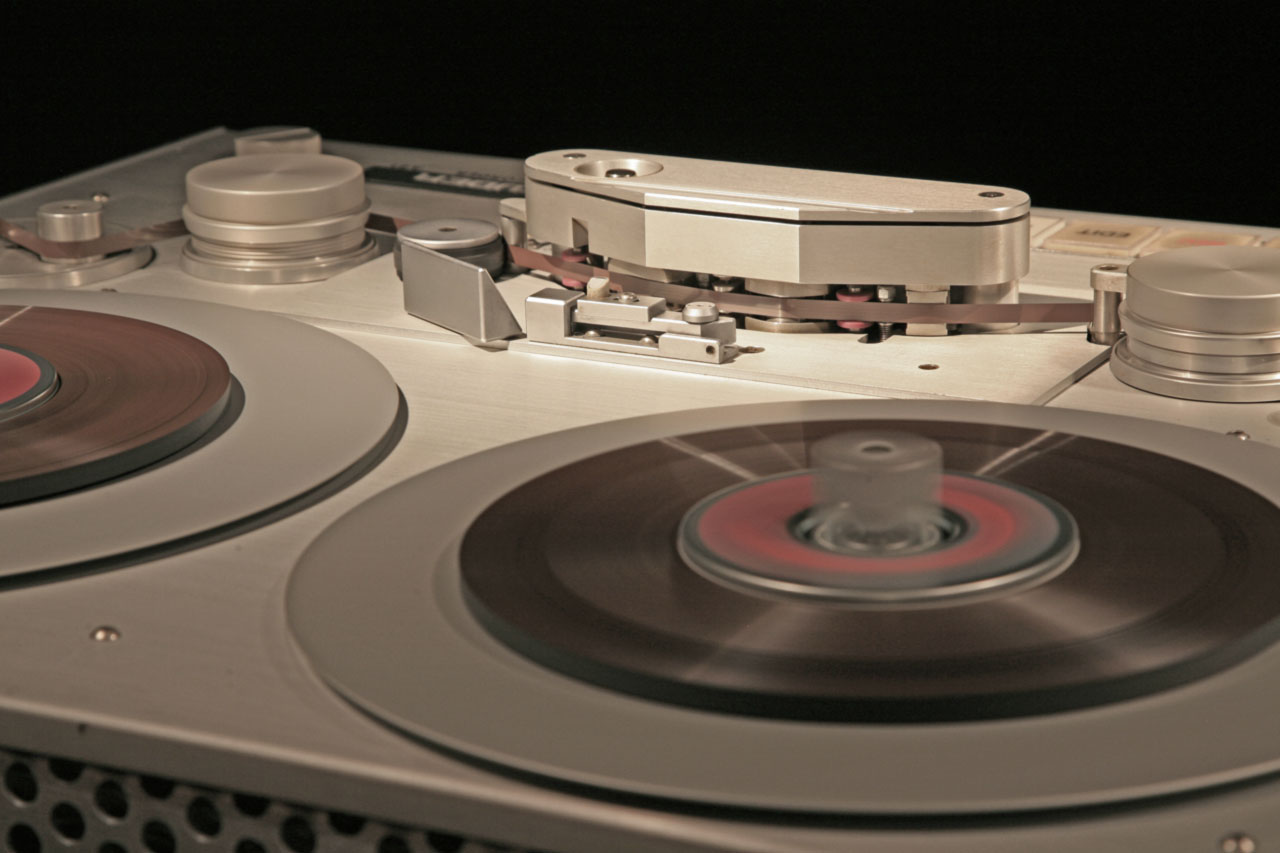

Photo Gallery
|
